Original Olympus Biological Microscope CX23 Binocular Microscope for Medical Laboratory Compound Electronic Digital Microscope CX23
$1150.00 / Parcel$1380.00 Min.order:1
Brand Sales

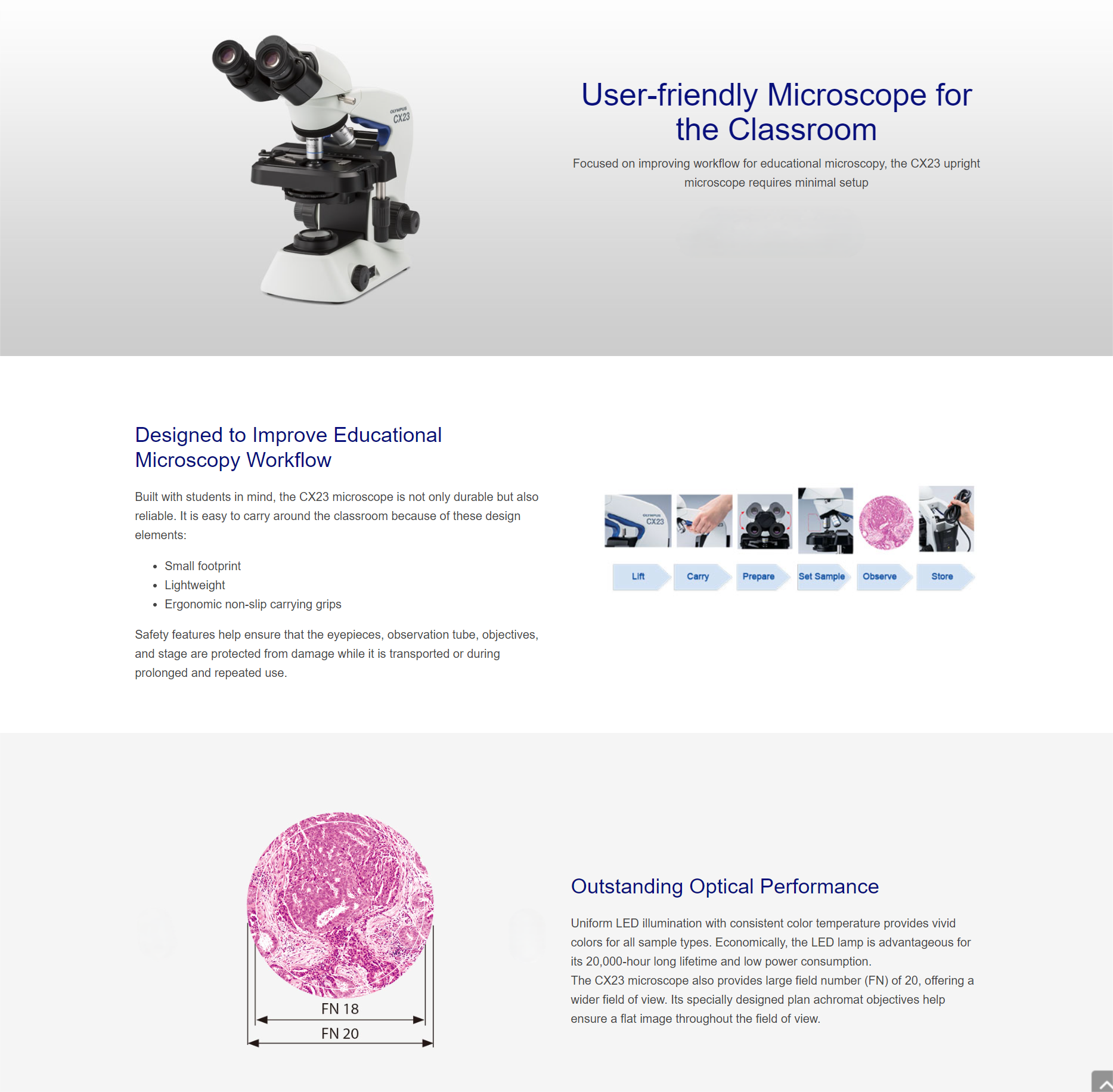

User-friendly Microscope for the Classroom Focused on improving workflow for educational microscopy, the CX23 upright microscope requires minimal setup

Support Payment Term:

HSBC Hong Kong

paypal

Alibaba Pay

Western Union

USD

EUR

GBP

SGD

HKD

CNH

CAD

MXN

BRL

JPY

THB

MOP

AUD

NZD

PLN

CZK

HUF

RON

CHF

SEK

NOK

DKK

TRY

AED

SAR

ILS

ZAR

The product has been delisted

Discover similar items

Page 1 of 2

  • Infinity-corrected Plan Achromat objectives (4x, 10x, 40x, 100x oil)
  • 10X F.N. 18 eyepieces
  • Anti-fungus treatment helps protect optical parts even in high humidity work conditions
  • Ultra-smooth, quadruple revolving nosepiece
  • Fixed Abbe condenser N.A. 1.25, aperture stop position for each objective
  • LED illumination. The built-in aspherical collector lens
  • Compact design with ergonomic grip for easy portability and storage in a typical classroom cabinet
  • Built-in right-hand stage with rackless design, low positioned X, Y controls
  • Student proof – The eyepieces, objectives, and condenser are all factory attached to the microscope body

The newly released Olympus CX23 microscope replaces the CX22 model. This Olympus CX23 model is easy to use, and offers outstanding optical performance with a large 20mm field of view. The LED light source provides stable long term illumination. This microscope is ideal for education or laboratories.



OLYMPUS CX23 MICROSCOPE SPECIFICATIONS
Head:Binocular 30⁰ inclined and rotatable 360⁰
Eyepieces:10x 20mm FOV
Nosepiece:Reversed, quadruple
Objectives:Plan Achromat 4x, 10x, 40x, 100x Oil
Condenser:1.25 N.A.
Stage:Rackless mechanical stage
Focusing:

Coaxial coarse/fine focus system with limit stopper and torque adjustment

Focusing:Coaxial focusing system with an adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
Illumination:LED Illumination variable with cord holder
Warranty:5 Year Mechanical & 1 Year Electrical
