Digital 12-channel Electrocardiograph ECG Machine

Features:

1. 7-inch high-definition color TFT LCD touch screen, displaying 12-lead ECG waveforms at the same time.

2. Light touch keys, easy and simple to operate, digital letter keys for convenient operation (touch screen operation is optional).

3. Synchronous acquisition of twelve leads ensures waveform time synchronization, providing a real basis for accurate and rapid clinical diagnosis.

4. Adopt digital signal processing technology to effectively suppress baseline drift, AC and EMG interference, and heart rate detection.

5. The first ten seconds printing function is convenient for doctors to print abnormal ECG waveforms.

6. Extend printing function, automatically trigger to print one record when the heart rhythm is abnormal.

7. The freeze function can still the whole LCD screen, which is convenient for doctors to observe the ECG waveform.

8. Two working modes: manual/automatic.

9. Five manual printing modes: 6 channels, 6 channels + 1rhy, 3 channels + 3rhy, test mode, 12 channels.

10. Eight automatic printing modes: 6x2, 6x2+1rhy, 6x2+1rhy+p, 3x4+3rhy, 3x4+1rhy+p, average template + P, 12x1, 12x1+p.

11. Four sampling modes: pre-sampling, real-time sampling, period sampling and trigger sampling.

12. Built-in ECG simulator with rhythm lead function, easy to observe abnormal heartbeat.

13.  AC and DC dual-use (can adapt to 50Hz/60Hz AC frequency), built-in rechargeable lithium battery and charging circuit, perfect battery overcurrent and overvoltage protection circuit.

14. high-resolution thermal dot matrix printing system, waveform tracing clear and accurate, and provide detailed text commentary.

15. Baseline stability detection ensures a neat and beautiful ECG waveform every time.

16. The data can be stored to U disk through USB communication interface and displayed in the computer.

17. External USB printer, barcode scanner, magnetic card reader, etc. can be connected through USB interface.

18. With waveform review functions such as freeze, playback and print preview.

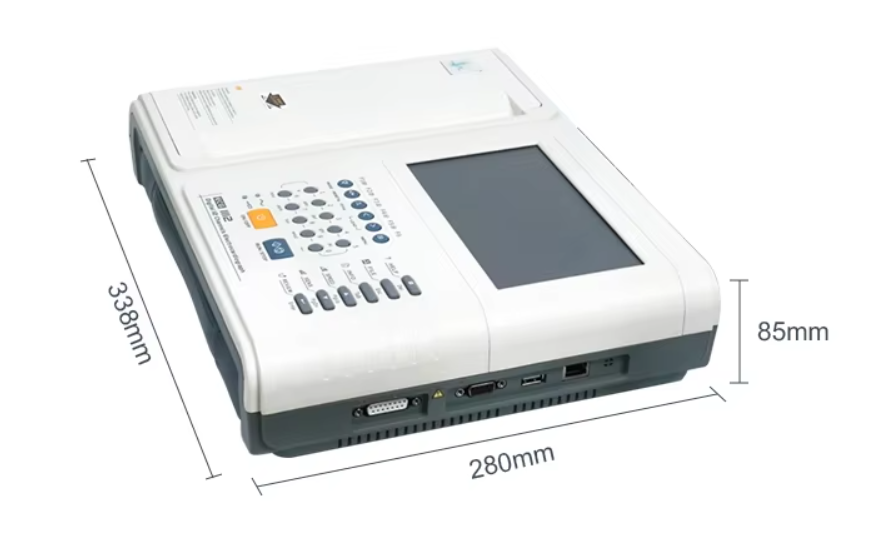

Size & Weight:

Machine: 338*280*85mm

Gross Weight: 5.6kg

Net Weight: 3.5kg

More details:

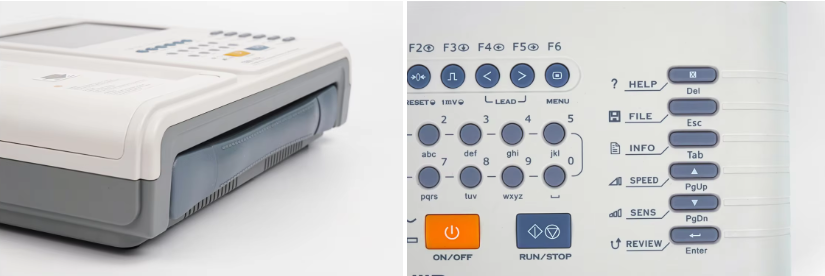

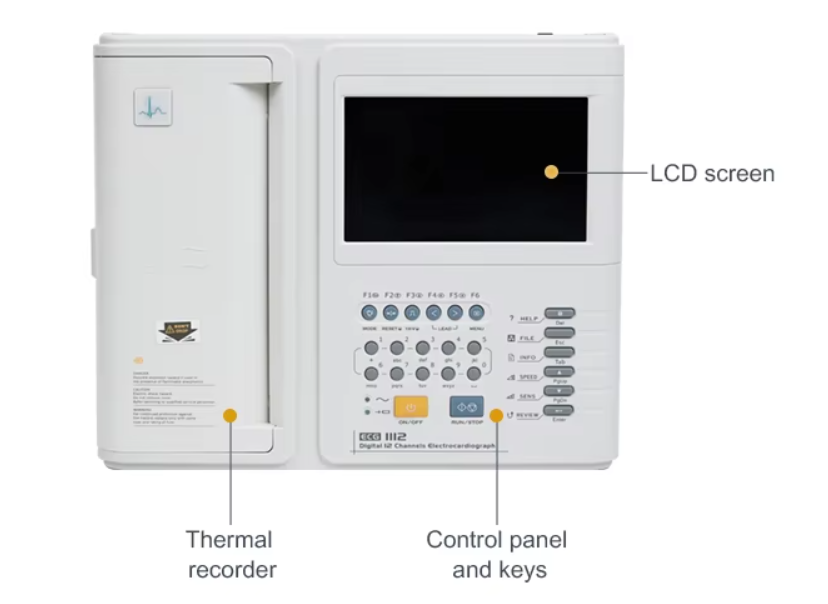

Touch Screen & Light touch buttons

7-inch high-definition color TFT LCD touch screen with simultaneous display of 12-lead ECG waveforms.

Light touch keys, easy and simple operation, numeric letter keys for easy operation.

Patient information area

The patient information area displays the patient ID, name, gender, age, and age unit and other required information.

Click the patient information area to enter the patient information input window to view and edit the detailed patient information, or create new patient information.

Rich recording format

Eight automatic printing modes:12*1、12*1+p、6T*2、6*2+1rhy、6*2+1rhy+p、3*4+3rhy、3*4+3rhy+p、Template+p.

Extended print function with automatic trigger to print standard 12-channel waveform in case of abnormal heart rhythm.

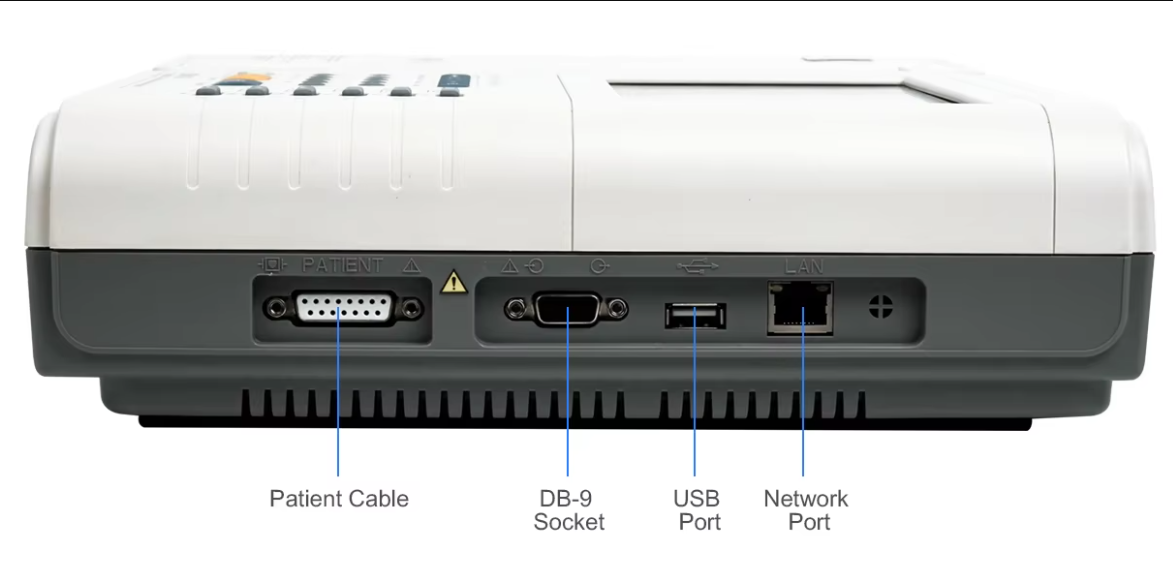

Convenient design, multiple data transmission methods

7-inch high-definition color LCD display, thermal dot matrix printout, dual-use AC and DC printing, stylish, easy to carry USB interface, convenient data transfer, storage, external barcode scanner, laser printer, etc., to meet the need for fast and accurate information entry, to achieve the printing of ordinary A4 paper reports.

If you have any more questions, please contact us for consultation.
