32 channels polysomnographe sleep monitoring device Portable full polysomnography machine Full PSG for ambulatory recording

Full PSG for in lab convenience

• Type I Attended in-lab recordings of the full complement of PSG signals using recommended technology.

• Maximum patient freedom and comfort - The patient is not tethered to any bedside unit or computer, instead data is transferred via Bluetooth wireless transmission from the patient worn unit to the bedside computer.

• Do everything you can usually do with an in-lab study – monitor patient data, run automatic or manual data analysis. Technical reports can be ready just minutes after the recording ends.

Full PSG for ambulatory recording

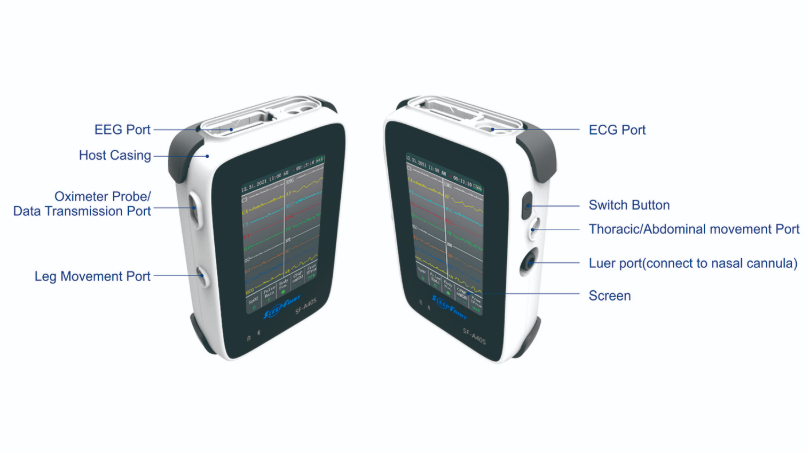

• The simple patient-worn unit allows rapid setup and use of the system anywhere.

• Fully self contained. No PC or laptop is required to setup and acquire data.

• Integrated TFT screen to check the quality of signals before or during recording.

• Unique signal status display for instant signal integrity. Signal integrity can be displayed during data review for quality assurance.

• Integrated SD card for data collection over 250 hours.

• Uses analogue differential amplifiers for the simplest and most robust recording of physiological signals, even in less than ideal situations.

Technical Specifications:

32 Available Channels

• 6 x EEG

• 2 x EOG

• 2 x Chin EMG

• ECG

• Airflow from pressure sensor

• Snoring from pressure sensor

• CPAP Titration

• Thoracic Inductive RIP belt

• Abdominal Inductive RIP belt

• Leg Movement

• Body Position

• Oximeter provides SpO2, Pulse Rate, Plethysmography waveform and Oximeter probe status

• Heart Rate

• CPC(Cardiopulmonary Coupling)

• Thoracic/Abdominal movement

• Body Movement

• MIC Snoring

• Voice Recording

• ABP(SBP, DBP, MAP) ABP: Ambulatory Blood Pressure SBP: Systolic Blood Pressure DBP: Diastolic Blood Pressure MAP: Mean Arterial Pressure

• PTT(Pulse Transfer Time)

• Simulated Airflow

• Respiratory Effort

Weight

• 192gm (including battery)

• Recorder Size: 111mm L x 72mm W x 24mm H

Flexible Signal Options

• Use a cannula to record airflow

• Use Inductive Plethysmography to record respiratory effort

• Use 3D gyroscope sensor integrated into device to acquire body position and movement

Sampling Rate

• 1-10000Hz Wireless Technology

• Uses Bluetooth Wireless technology for patient freedom

• Up to 10m range from bedside computer to patient - dependant on environment

Power

• Input: 100-240V~, 50/60Hz, 0.5A Max.

• Output: 5.0V === 2.0A Battery

• 3.7V, 4000mAH chargeable lithium battery(built in device).

Recording Time

• Up to 14 hours of recording with 100% battery.

Compatible Software

• Sleep Fairy for data analysis

• Digital video can be used with PSG Online

 If you have any more questions, please contact us for consultation.
