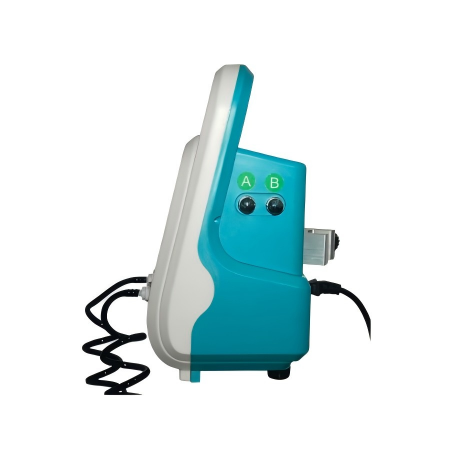

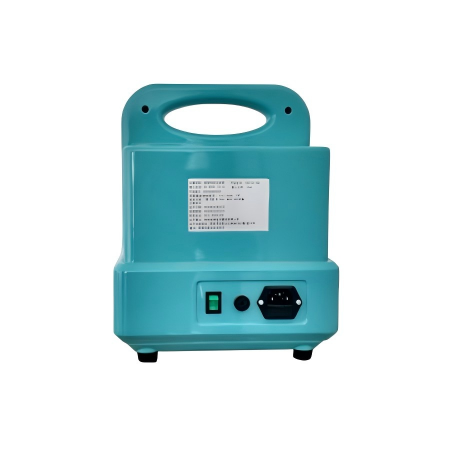

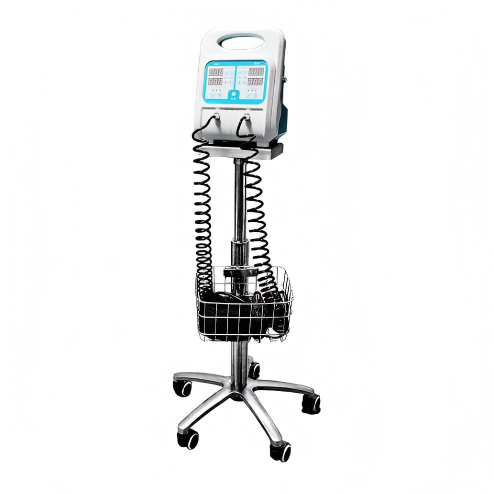

Automatic pneumatic tourniquet System hemostasia tourniquet cuff for compression hemostasis in limb surgeries

$540.00 / Parcel Min.order：1

Super Low Price

An automatic pneumatic tourniquet system is a medical device used in orthopedic and other limb surgeries to create a bloodless surgical field. It consists of an electronic control unit and an inflatable cuff that applies precise, programmable pressure to the limb, temporarily occluding blood flow to minimize hemorrhage and improve surgical visibility.

Support Payment Term:

PayPal

USD

EUR

GBP

SGD

CNY

MXN

BRL

JPY

THB

AUD

$540.00

Quantity

Price not good?Product not right?Need more support?Chat here!

Working Principle:

Through controlling air pressure in hemostasia cuffs, inflatable cuffs can compress limbs, and then occlude blood flow, so that bleeding can be stopped.

Specifications:

Host machine size	220 mm (L) * 161 mm (W) * 292 mm (H)
Pressure set	3 kPa - 100 kPa; Step value: 1 kPa; Tolerance: ± 2 kPa
Time set	1 min - 600 mins; Step value: 1 min; Tolerance: ± 3 s
Power supply	220 V ± 22V, 50Hz ± 1Hz
Power	18VA

Main Technical Features:

Voice prompt function: "Di-di-di" alarm at 10 mins, 5 mins and 1 min before the surgery completed; continual "di" reminds of the end of the surgery.

Pressure anomaly prompt: Continual "di" will remind operators in case air pressure in hemostasia cuff exceeds ± 5 kPa of the set value over 2 mins.

Ladderlike deflation: Deflate at a 10-second frequency; Deflation pressure: 3 kPa; Tolerance: ± 2 kPa.

Pressure maintenance: Machine can maintain the pressure in hemostasia cuffs even if sudden power off; Air leakage rate is not more than 10 kPa/h.

Automatical pressure adjustment: Detect air pressure in hemostasia in real time while working, so as to ensure stable pressure value.

Memory function: Memorize the parameters in last surgery automatically.

Applications:

Applied to compression hemostasis in limb surgeries.

If you have any more questions, please contact us for consultation.
