New Pentax endoscopy system with gastroscope and colonoscope EC34-i10L medical video colonoscope price Slim Colonoscope Endoscopy Surgical
Support Payment Term:
PayPal
USD
EUR
GBP
SGD
CNY
MXN
BRL
JPY
THB
AUD
$26912.00
Discover similar items
Page 1 of 2
Features:
The i10 endoscope series
The i10 series offers impressive visualization and excellent therapeutic options. These endoscopes allow you to fully exploit their wide range of features to undertake the most sophisticated procedures. The graduated flexibility allows optimal insertion control of the endoscope, while the advanced ergonomics deliver increased maneuverability, control and comfort.
Next generation megapixel CCD for improved HD+ image quality
Crisp, clear and bright endoscopic image are combined with exceptional field of view for a superior visualization of the mucosa. It includes gastroscopes, colonoscopes and, the first-to-market outstanding HD+ duodenoscopes.
Exclusive close focus
State-of-the-art endoscopy combined with Close Focus allows detailed examination and close visualization of suspicious mucosal details.
Expanded therapeutic option
Excellent therapeutic option is included in all standard and slim endoscopes – for your daily challenges, the best ratio of external diameter & working channel combined with water jet system.
Improved graduated flexibility
Improved flexibility of the insertion tube increases patient comfort and examination performance during every colonoscopy.

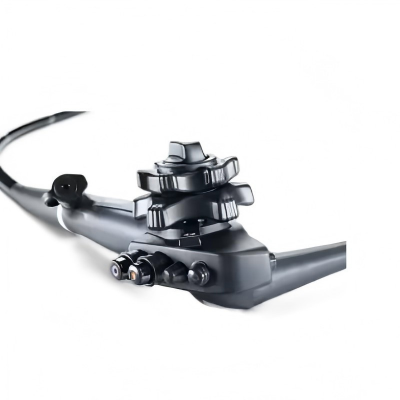

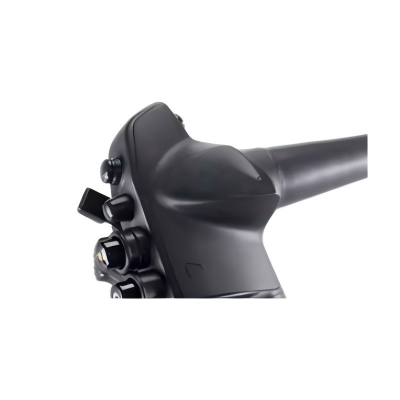

Optimized control body
Lighter weight and improved size serves excellently during challenging procedures.
Specifiations:
Characteristics |
|
Endoscope Key Feature | Water Jet system |
Endoscope Key Feature | Close Focus |
Endoscope Key Feature | i-FLEX |
Endoscope Key Feature | Slim |
Endoscope Key Feature | TrueTorque |
Device Weight (kg) | 1.900 |
Endoscope Key Feature | Wide therapeutic option |
Variable Stiffening of Insertion Tube | Yes(Automatic TrueTorque and i-FLEX) |
Entirely Immersible for Disinfection | Yes |
Electrosurgery & Laser |
|
Compatibility with Electrosurgery | Yes (Floating type ESU) |
Compatibility with Laser | Yes (YAG Laser and Diode Laser) |

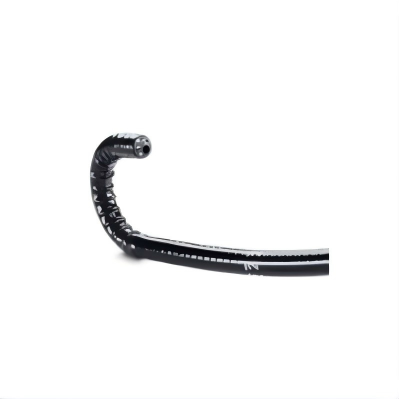

Distal End |
|
Distal End Diameter (mm) | 11.5 |
Cannula / Forceps Elevator Control Knob (Albaran Lever) | No |
Direction of View | Forward |
Tip Angulation Right / Left (°) | 160 / 160 |
Tip Angulation Up / Down (°) | 180 / 180 |
Dimensions |
|
Insertion Tube Working Length (mm) | 1700 |
Insertion Tube Diameter (mm) | 11.6 |
Total Length (mm) | 2016 |
Instrument Channel Diameter (mm) | 3.8 |
Length from Center of Control Body to Distal End of Light Guide Prong (mm) | 1720 |
Maximum Insertion Tube Diameter (mm) | 12.85 |
Rigid Distal Diameter (mm) | 11.5 |
Carrying Case Width ×Height ×Depth (cm) | 63×45×13 |
Image |
|
Image Definition | HD+ |
Field of View (°) | 140 |
Chip System | CCD |
Endoscope Technology | Video |
Depth of Field (mm) | 2 ~ 100 |
Endoscopic Device Appearance in Endoscopic Image | 2 mm |
