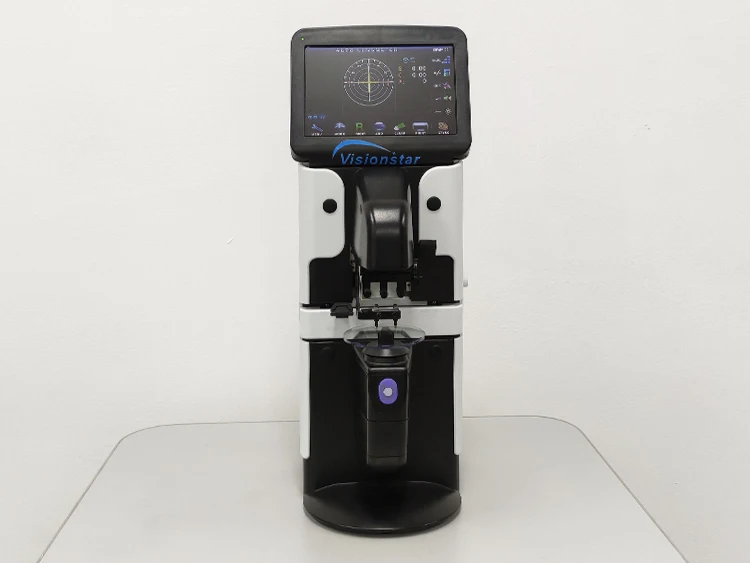

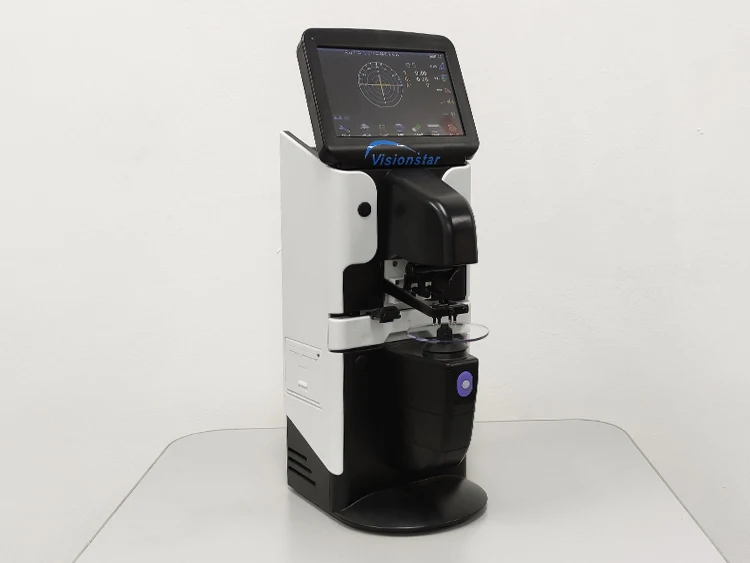

JD-2600A Digital Auto Lensmeter
MOQ: 1 Unit
Features:

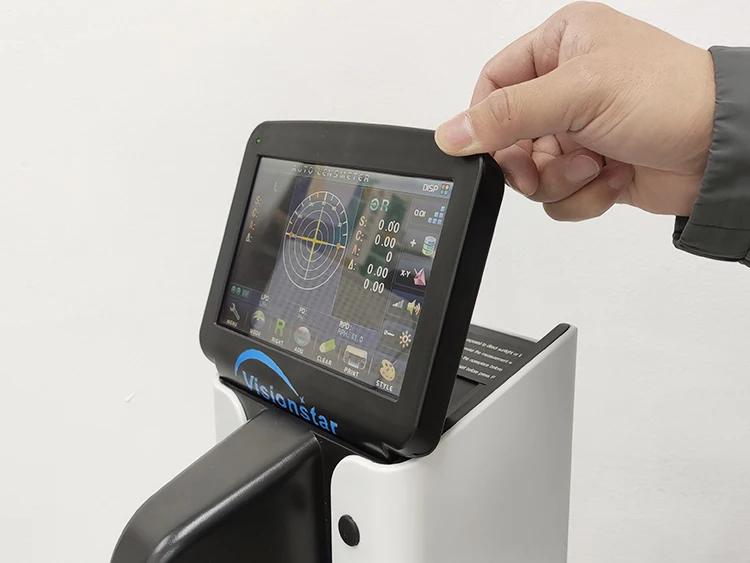

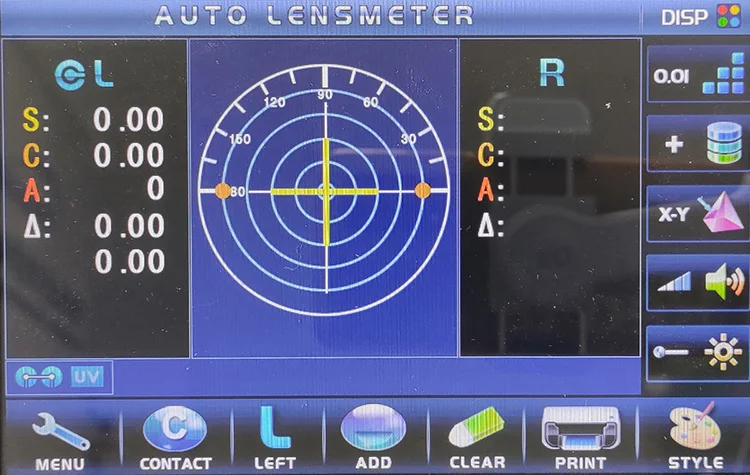

1. Adjustable LCD Display Screen: Tilt color screen provides you with clear view from any position such as sitting and standing;
2. Sensitive touch LCD display Screen: you just touch the screen to finish measurement, the operation could be easier an d more convenient.
3. The new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
![]() | ![]() |
![]() | ![]() |

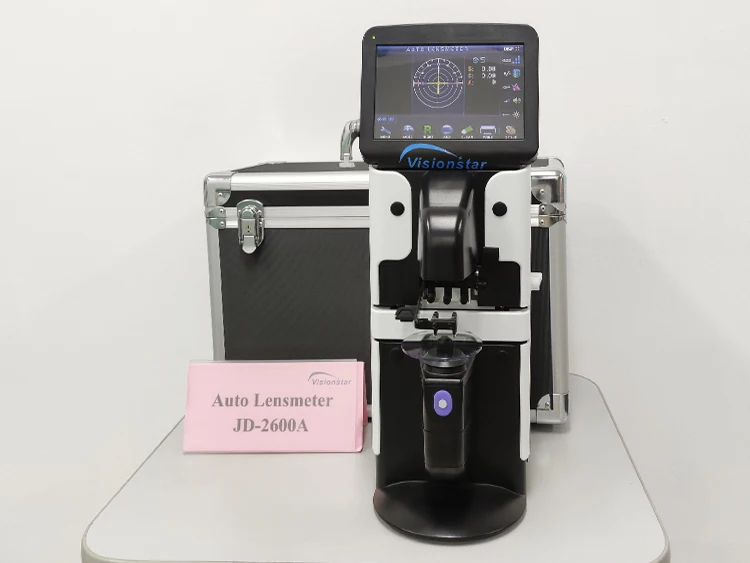

Portable with Carrying Box

Design Features
![]() | ![]() |
| Adjustable LCD touch screen | Built-in thermal printer |
![]() | ![]() |

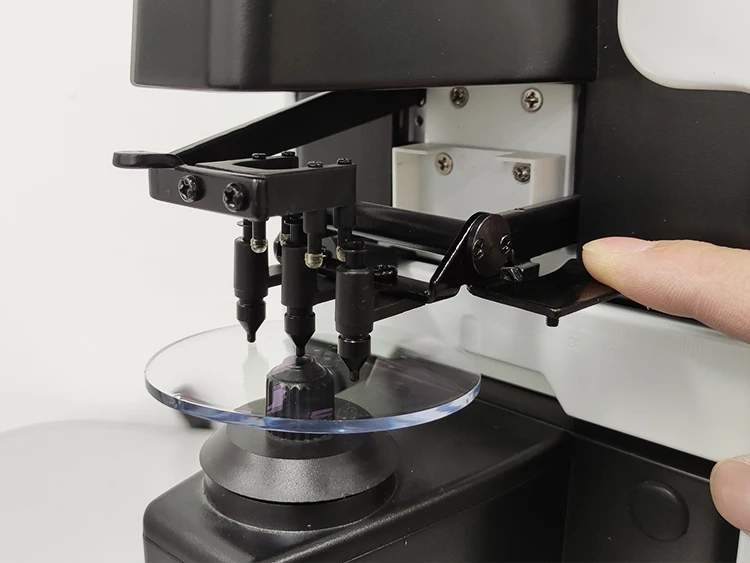

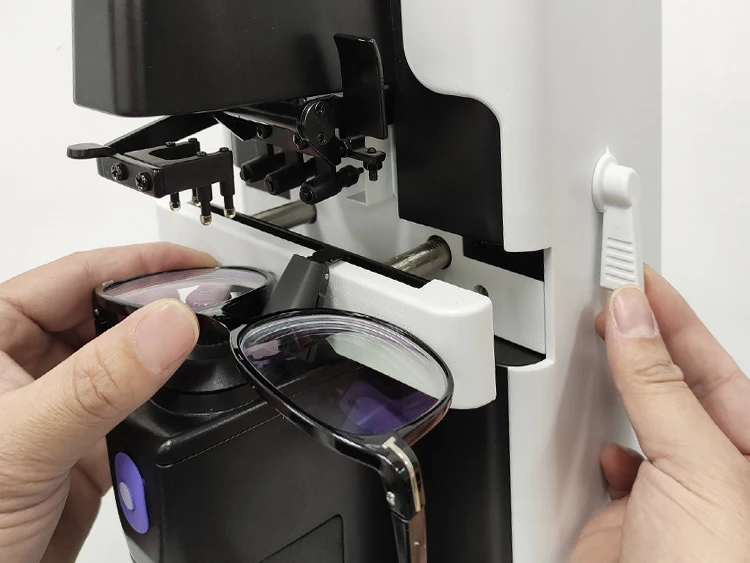

| Lens marking lever | Lens table for eyeglasses test |
Software
![]() | ![]() |

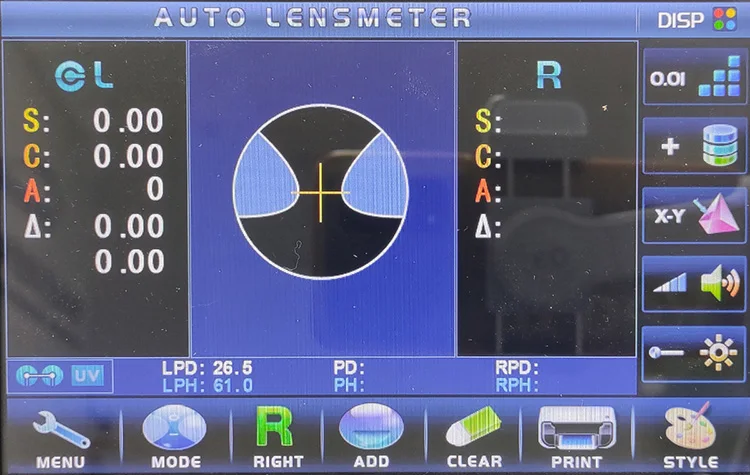

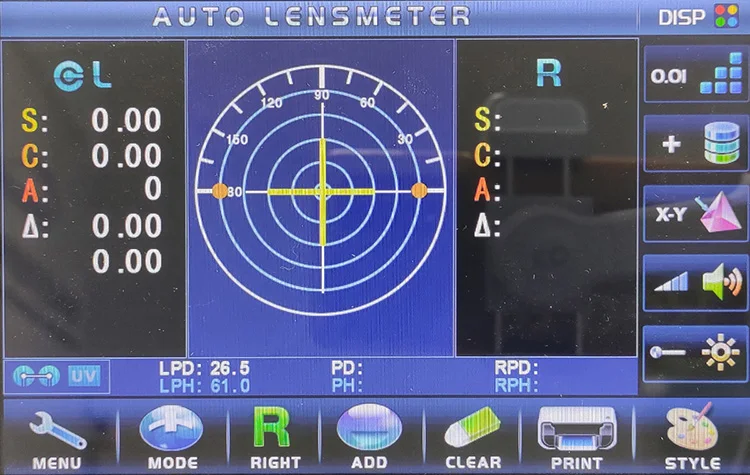

| Automatic lens type detection | Single vision lens test |
![]() | ![]() |
| Progressive lens test | Contact lens test |
Parameter settings
![]() | ![]() |

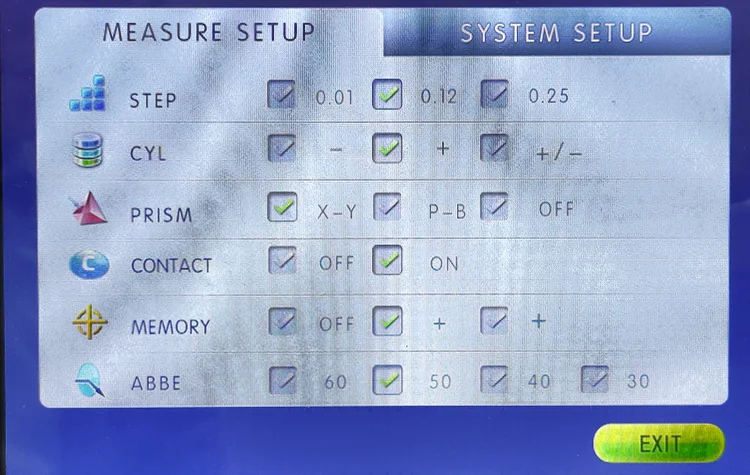

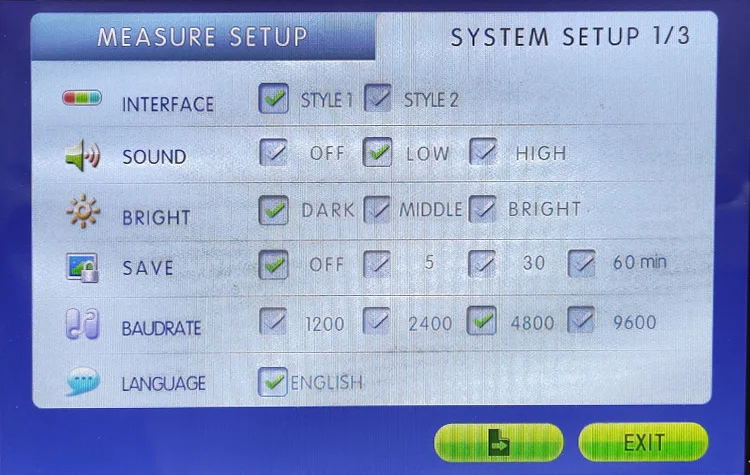

| Measurement setup | System setup |

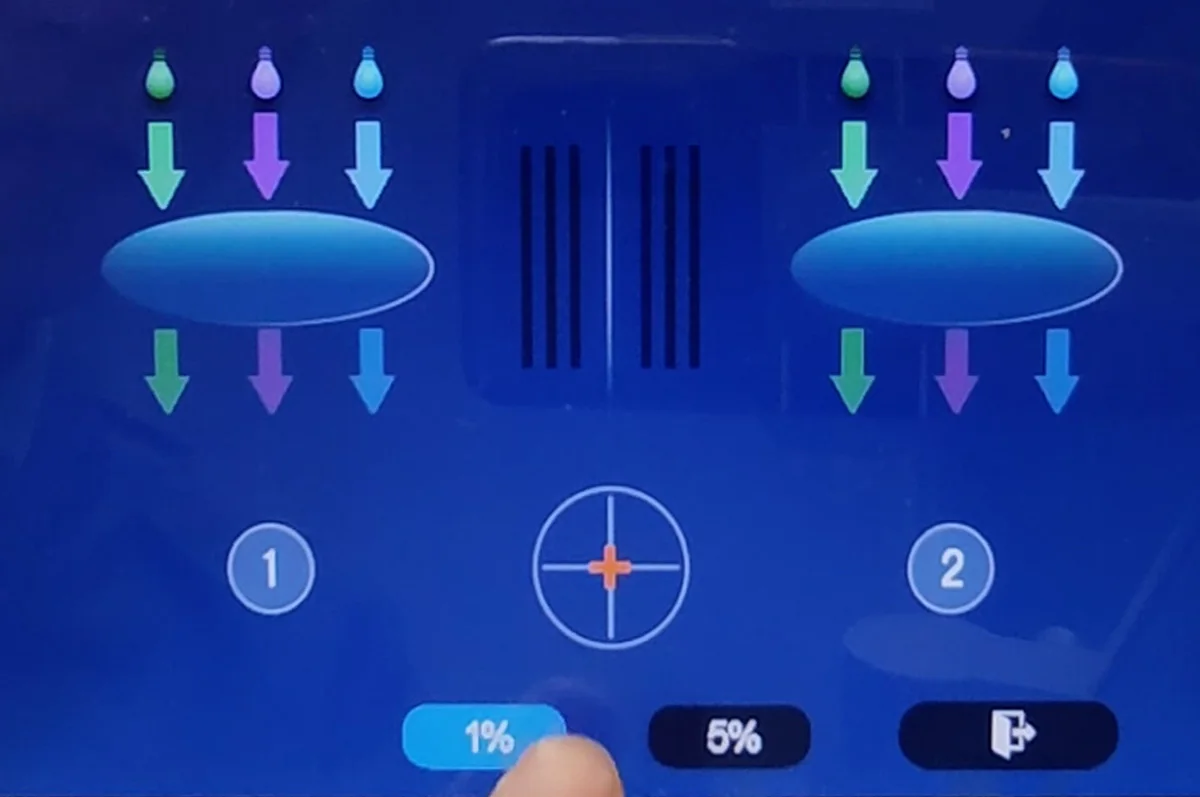

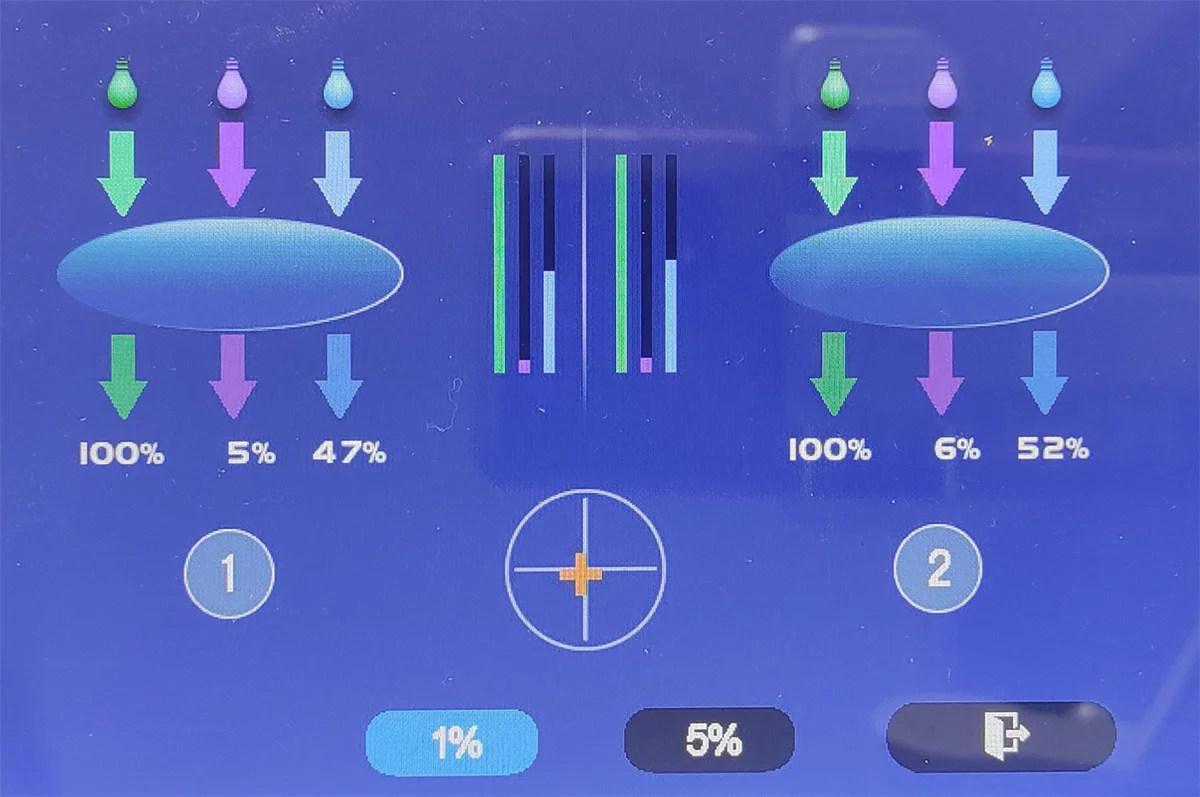

UV, blue and green light test
![]() | ![]() |

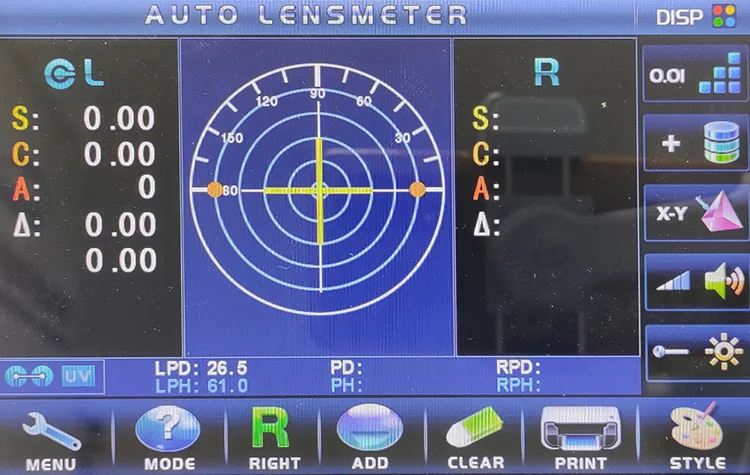

Test accuracy 1% or 5% | Test results |

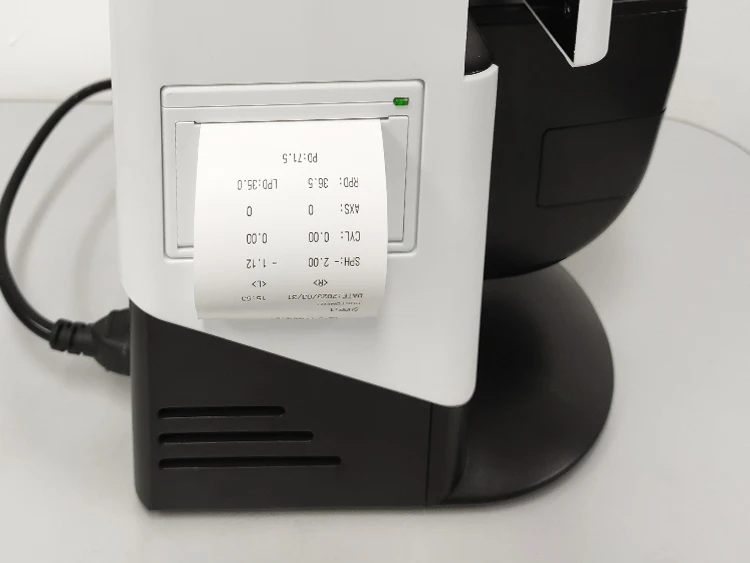

Printed test report

Two models with different screen size

Specifications:
Range of measurement | |
Sphere | 0~+- 25D, 0.01/0.12/0.25D step; |
Cylinder | 0~ +-9.99 D 0.01/0.12/0.25D step. |
Axis | 0-180 ° (1 ° step) |
Add. | 0-9.99 D 0.01/0.12/0.25D step. |
Prism degree | 0-15 D 0.01/0.12/0.25D step. |
Measurement mode | |
Cylinder | +, +/-, - |
Prism | X-Y, P-B |
Contact Lens | soft/hard; |
Measuring mode | Single/progressive/automatic recognition |
Specifications | |
Diameter of lens | 20-108mm; |
PD | 40-90mm, 0.5mm step; |
Speed of measurement | 0.1s |
Display | JD-2600A: 7'' TFT LCD; JD-2600B: 5.6’’ TFT LCD |
Printer | Thermal Printer |
Weight | 5.5kg |
Power supply | 100-240V, 50-60HZ |
