Original Sysmex Refurbished Medical Brand CA600 Series CA-620/CA-660 Automated Blood Coagulation Analyzer

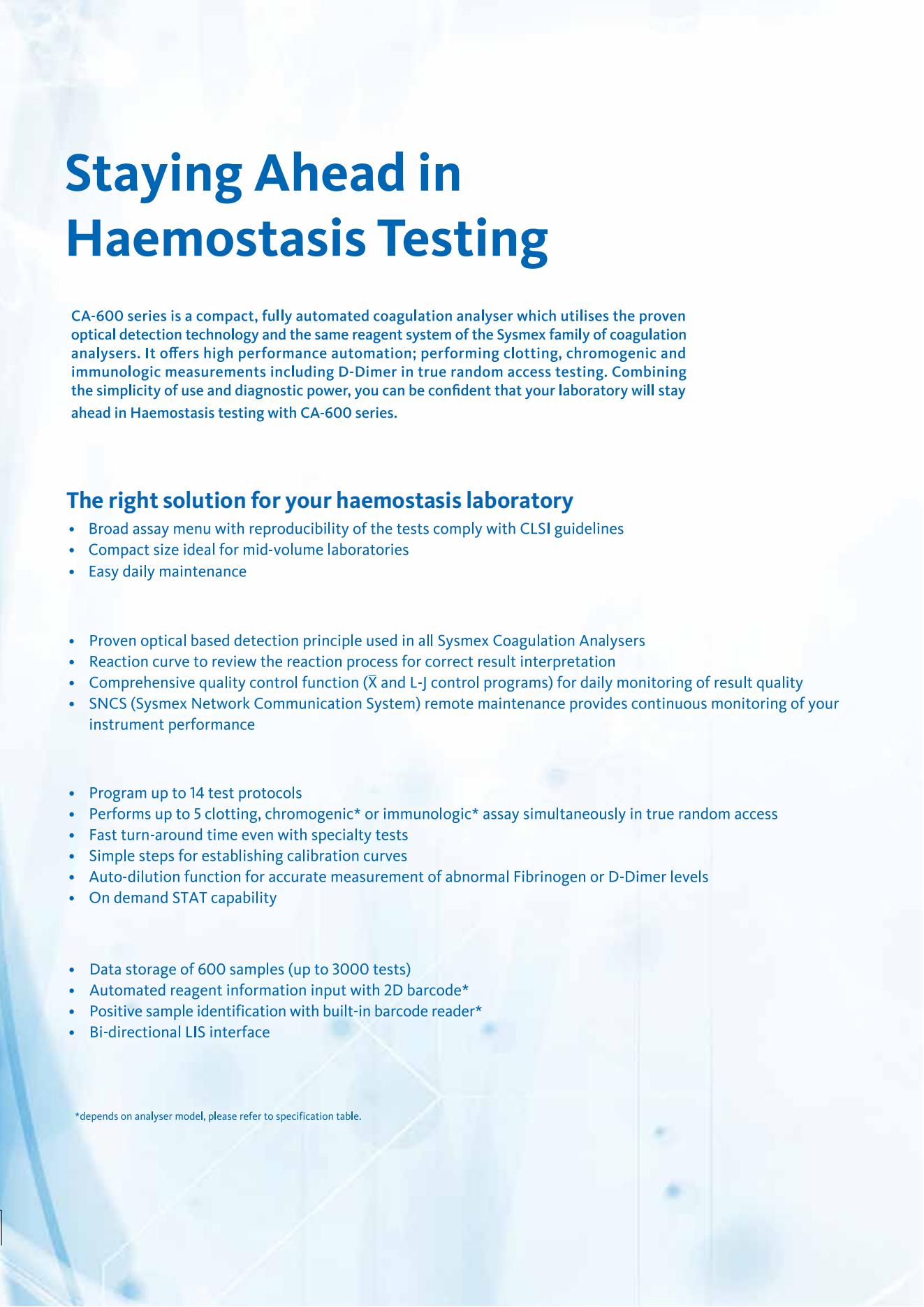

The CA-600 system offers an economical, automated solution for low-medium volume laboratories to achieve analytical excellence, workflow efficiency and improved data management.

Analytical excellence

• The imprecision of manual coagulation testing is high, with coefficient of variation (CV) of greater than 20%; and duplicate measurement is thus recommended. With CA-600, fully automated coagulation analyser, the accuracy has greatly improved, attaining a CV of less than 5%, and as low as 1% for some tests.

• Based upon its predecessors, the proven optical based detection principle allows operator to visualise the clot formation, and together with its in-built checking algorithm, detect any unusual in-vitro clot formation to avoid the report of inaccurate results.

Workflow Efficiency

• Medical Technologists can now focus on higher value aspects of laboratory testing such as pre-analytics or post-analytics that require focused attention.

• Simultaneous analysis of up to 5 parameters and optimal throughput allow laboratories to perform routine and specialty testing in greater efficiency.

Excellent data management

• Sample barcode reader simplifies sample ID processing and enables security and integrity of patient records.

• Handheld 2D barcode reader simplifies the data entry process for ISI, control and calibrator values, lot numbers, and expiry information.

• Data up to 600 samples or 3000 tests can be stored onboard for easy retrieval for review.
•


  Detection principles	Clotting: scattered light detection method
  Detection channel/method	4 LEDs with wavelength 660 nm for clotting assays
  Parameters	5-parameter random analysis simultaneously
  Throughput	PT: 60 tests/hour PT/APTT/Fbg: 42 tests/hour
  Sampling	Continuous-access 10 sample rack 1 dedicated STAT position
  Reagent holder	13 positions (with 4 cooled and 3 dedicated to diluents, buffers or cleaning reagents)
  Reference curves	1 reference curve per parameter 1 lot per parameter Maximum 14 parameters
  Quality control	X-bar control, Levy-Jennings control 6 files with maximum 180 points each
  Data storage	Up to 600 samples / maximum 3,000 tests
  Printer	Internal printer
  Dimensions (WxHxD)/weights	566 x 490 x 490 mm, 42 kg (approximate)
