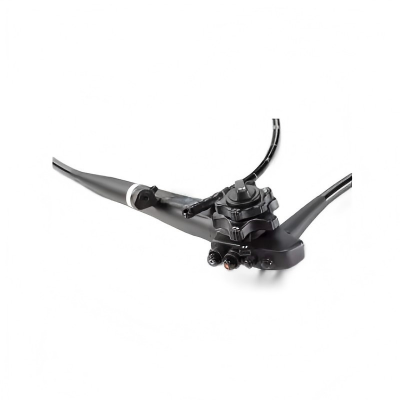

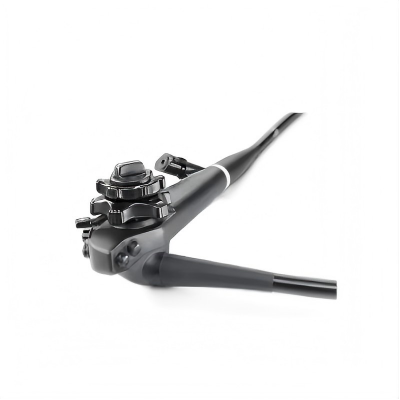

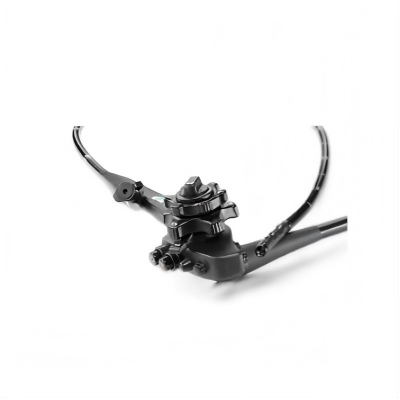

Pentax Medical portable gastroscope endoscope EG29-i10 Video Gastroscope i10-Series HD+ video endoscopes
Support Payment Term:
PayPal
USD
EUR
GBP
SGD
CNY
MXN
BRL
JPY
THB
AUD
$23896.00
Discover similar items
Page 1 of 2
Features:
Exclusive close focus
State-of-the-art endoscopy combined with Close Focus allows detailed examination and close visualization of suspicious mucosal details.
Expanded therapeutic option
Excellent therapeutic option is included in all standard and slim endoscopes – for your daily challenges, the best ratio of external diameter & working channel combined with water jet system.
Improved graduated flexibility
Improved flexibility of the insertion tube increases patient comfort and examination performance during every colonoscopy.
Optimized control body
Lighter weight and improved size serves excellently during challenging procedures.
Specifications:
Characteristics |
|
Endoscope Key Feature | Close Focus |
Endoscope Key Feature | Wide Therapeutic Option |
Endoscope Key Feature | Water Jet System |
Device Weight (kg) | 1.710 |
Endoscope Key Feature | Routine |
Entirely Immersible for Disinfection | Yes |
Electrosurgery & Laser |
|
Compatibility with Electrosurgery | Yes |
Compatibility with Laser | Yes (YAG Laser) |
Distal End |
|
Distal End Diameter (mm) | 9.9 |
Direction of View | Forward |
Tip Angulation Right / Left (°) | 120 / 120 |
Tip Angulation Up / Down (°) | 210 / 120 |
Dimensions |
|
Insertion Tube Working Length (mm) | 1050 |
Insertion Tube Diameter (mm) | 9.8 |
Total Length (mm) | 1366 |
Instrument Channel Diameter (mm) | 3.2 |
Length from Center of Control Body to Distal End of Light Guide Prong (mm) | 1720 |
Maximum Insertion Tube Diameter (mm) | 11.45 |
Rigid Distal Diameter (mm) | 9.9 |
Carrying Case Width x Height x Depth (cm) | 63 x 45 x 13 |
Image |
|
Image Definition | HD+ |
Field of View (°) | 140 |
Chip System | CCD |
Endoscope Technology | Video |
Depth of Field (mm) | 2 ~ 100 |
Endoscopic Device Appearance in Endoscopic Image | 5 O'clock |
If you have any more questions, please contact us for consultation.
