Venous Imaging Instrument Vein Finder Detector Vein Scanner for Hospital

Detailed product information

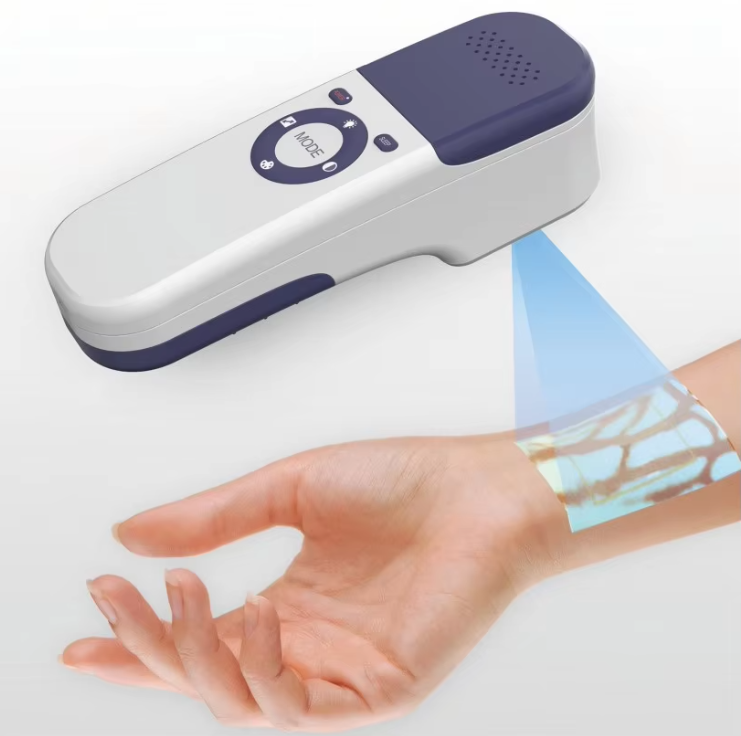

By using near-infrared imaging technology, subcutaneous veins are "illuminated" and clearly displayed, thus greatly facilitating rapid, precise and safe venipuncture operations.

Venous vessel visualization: The instrument captures reflection differences and, through specific image processing techniques, generates clear images or projections of subcutaneous veins in real time on the display screen, making veins that were previously difficult to see with the naked eye "visible".

Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain.

This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.

Functions

This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments.

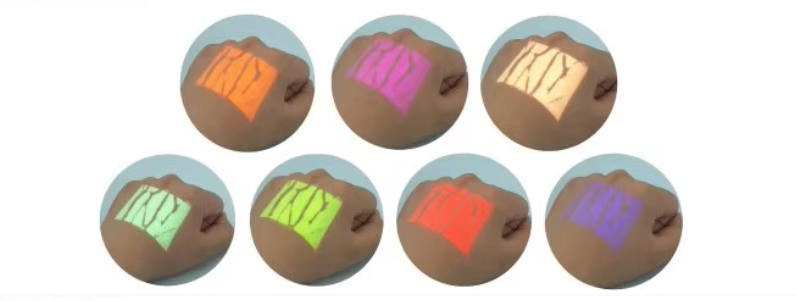

-7 Colors Available: Suitable for different skin colors or environments.
-3 Sizes Available: Suitable for adults, children and newborns.
-5 Levels of Brightness: Adjust the projection image to the most comfortable brightness.
-Inversion: Reduce arm hair interference and make blood vessels clearer.
-Enhancement Mode: Enhance the clarity of blood vessel detection.
-Sleep Mode: enter into low power mode when the user needs short intervals and can be waked up quickly.

Technical Parameter
1. Infrared light detection without harm to human body.
2. Infrared detection depth: 8mm
3. Best detection distance:15-25cm
4. Accuracy of blood vessel position:士0.5mm
5. Accuracy of blood vessel resolution:士0.5mm
6. Low working noise: <40Bp
7. The battery power can be displayed at the upper side of the projected image.
8. Low Battery capacity prompt.
9. Panasonic 340omA rechargeable lithium battery, 3 hours duration.
10. DLP projection technology.
11.Power supply of charging: 5V 2.0A, 100V-240V 50Hz-60Hz
12. Weight: 280g
13. Size:20*6*6.5cm

If you have any more questions, please contact us for consultation.
