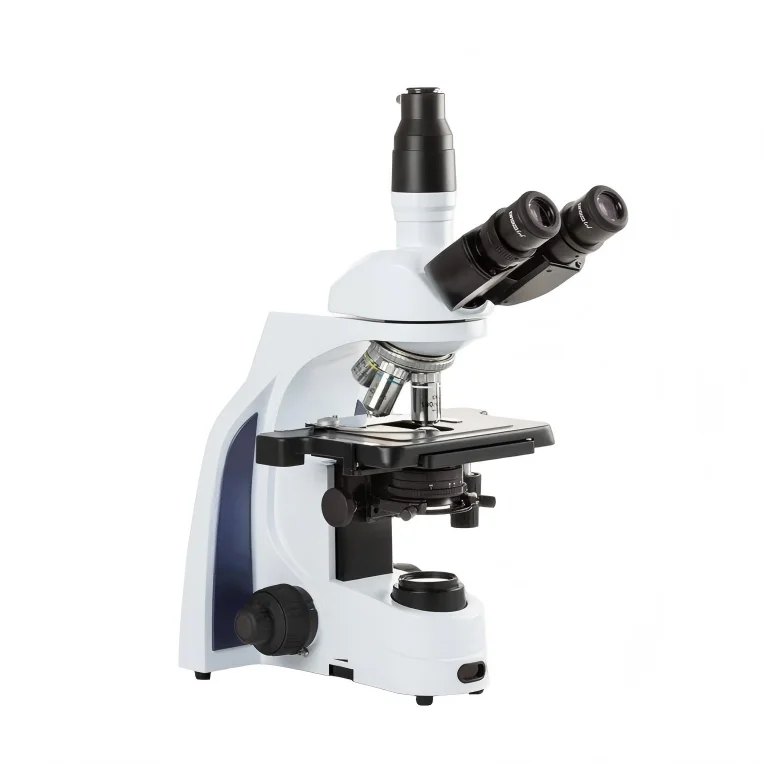

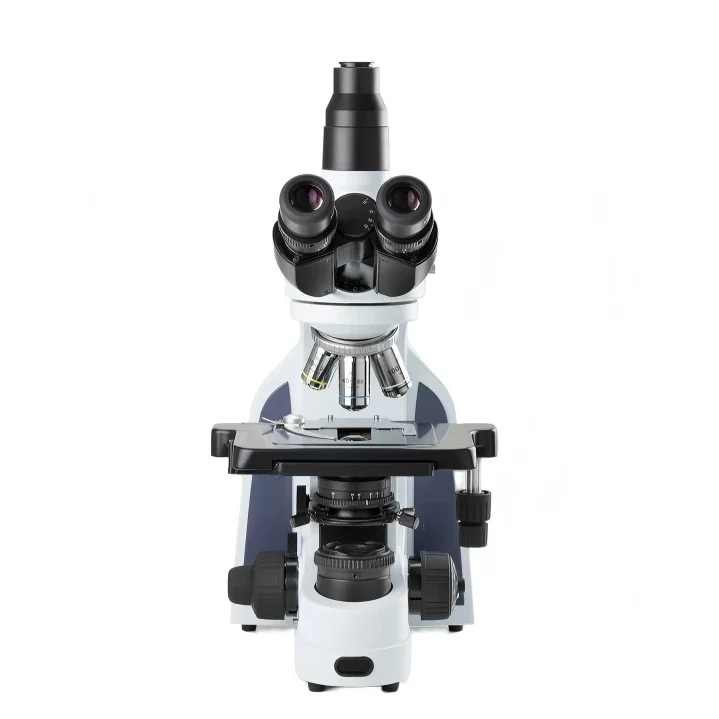

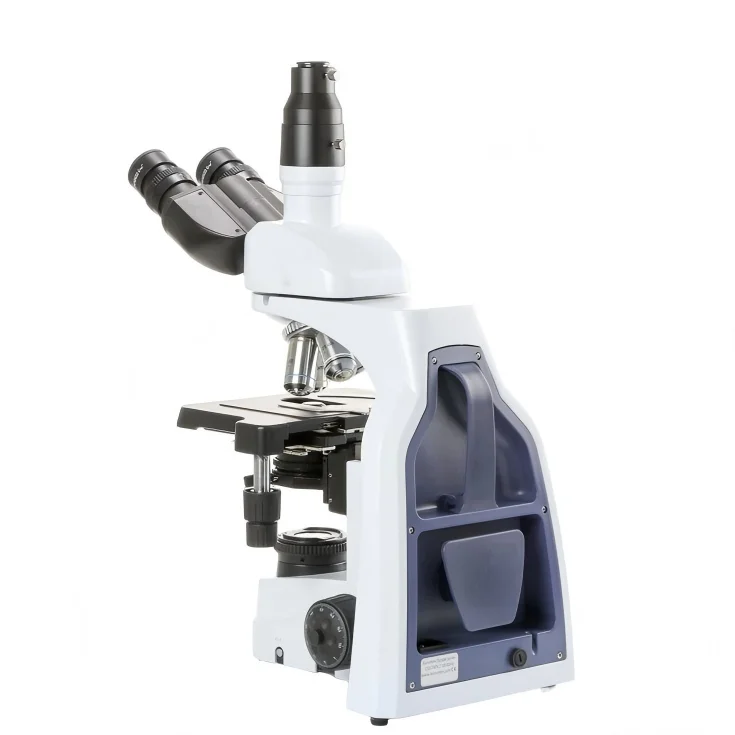

Euromex iScope EIS-1153-PLi digital trinocular microscope Compound Microscope with Plan IOS Objectives Phase Contrast Microscope

Features:

EWF 10x/22mm

Trinocular model

Quintuple reversed nosepiece

187/230 x 140mm rackless stage

3 W NeoLED Kohler illumination

iCare sensor for energy saving

CSS - Cable Storage System

Specifications

EYEPIECES

Extended Wide Field HWF plan 10x eyepieces with 22 mm field of view and adjustable diopter on both eyepieces for infinity corrected IOS plan and plan phase systems.

HEAD

Trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm.

A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm).

NOSEPIECE

Revolving quintuple reversed nosepiece for max. five objectives.

STAGE

187/230 × 140 mm rackless stage equipped with double slide holder and integrated 79 × 52 mm X-Y mechanical stage.

The iScope rackless stage has no protruding parts, enables smoother movements and is safer.

CONDENSER FOR BRIGHTFIELD

The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast.

With magnification indication.

FOCUSING

Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range approximately 24 mm.

Supplied with an adjustable rack stop to prevent damage to sample and objectives.

The coarse adjustments are equipped with friction control.

ILLUMINATION

3 W adjustable LED diascopic illumination with internal 100–240 V power supply for brightfield and phase contrast models.

The innovative LED design offers larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics.

Other benefits of the LED are low energy consumption, no heating and a long operating lifetime.

The Kohler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics.
